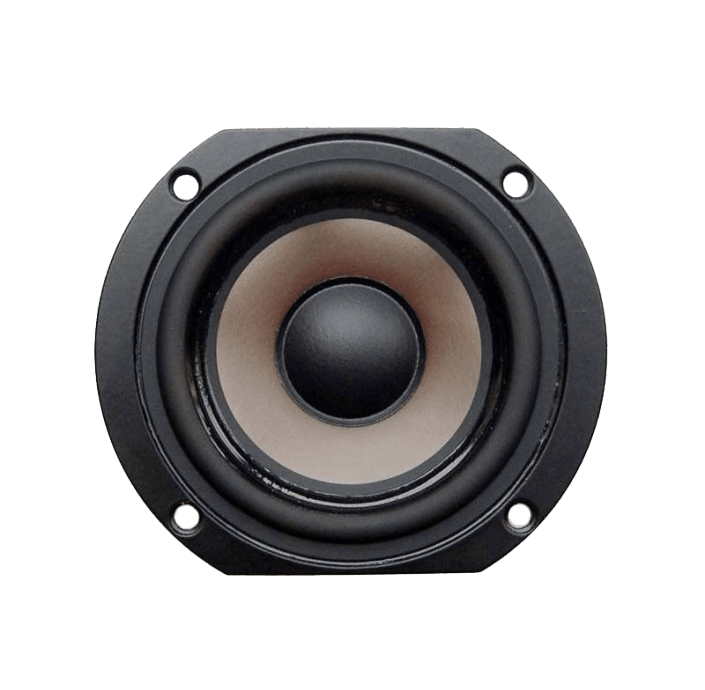

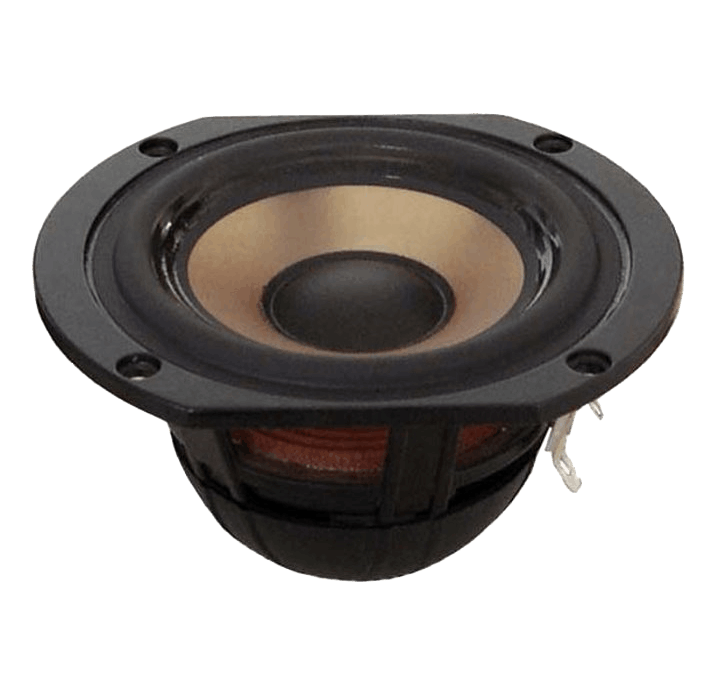

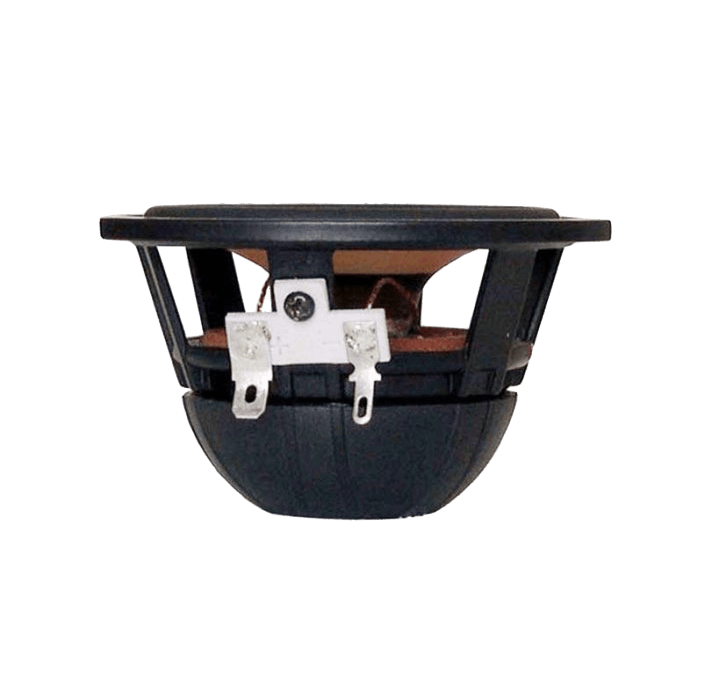

Tang Band W3-532SQ 3" PPM Neodymium Full Range

Description :

Neodymium magnet design.
Full range frequency response.
Die cast basket.
PPM Cone with santoprene surround.
Magnetically shielded.

Unit : pc Gross Weight : 0.202kg

Technical Parameters
SIZE:3"
CATEGORY:Full Range
DIAPHRAGM MTL:Natural color PPM
SURROUND MTL:Santoprene
NOMINAL IMPEDANCE:8 Ω
DCR IMPEDANCE:6.6 Ω
SENSITIVITY 1W/1m:86 dB
FREQUENCY RESPONSE:100-20K Hz
FREE AIR RESONANCE:100 Hz
VOICE COIL DIAMETER:20.4 mm
AIR GAP HEIGHT:6.0 mm
RATED POWER INPUT:12 W
MAXIMUM POWER INPUT:25 W
FORCE FACTOR, BL:3.53 TM
TYPE OF MAGNET:Neodymium
MOVING MASS:27 g
FERROFLUID ENHANCED:No
SUSPENSION COMPLIANCE:1152 uMN¯¹
EFFECTIVE PISTON AREA:0.0032 M²
Levc:0.27 mH
Zo:56.68 Ω
X-max:0.2 mm
Vas:1.68 Litr
Qts:0.61
Qms:5.26
Qes:0.69

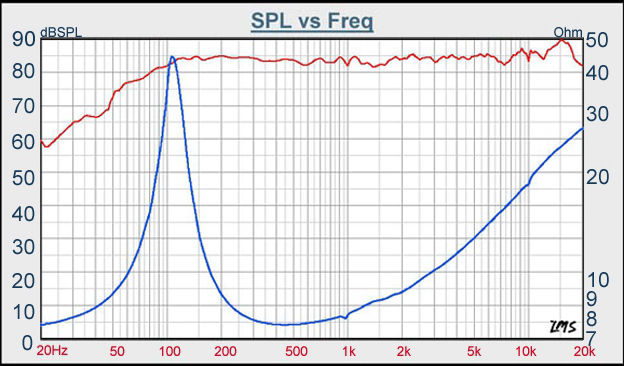

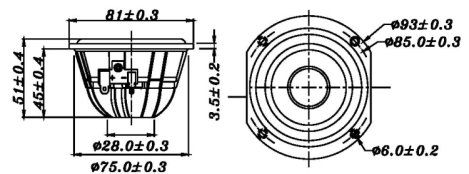

Performance and installation details
