Description :
Full range frequency response.
High power loading design.
Stamping steel basket, VC vented design.
Bamboo fiber paper cone with santoprene surround.
Magnetically shielded.
Underhung motor design.
Low 2nd, 3rd distortion design.
Unit : pc Gross Weight : 0.662kg
Technical Parameters
SIZE：3"
CATEGORY：Full Range
DIAPHRAGM MTL：Paper
SURROUND MTL：Santoprene
NOMINAL IMPEDANCE：8 Ω
DCR IMPEDANCE：6.6 Ω
SENSITIVITY 1W/1m：86 dB

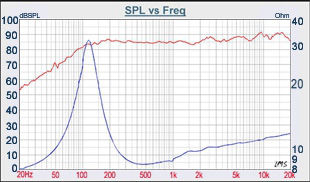

FREQUENCY RESPONSE：110-20K Hz
FREE AIR RESONANCE：110 Hz
VOICE COIL DIAMETER：18.4 mm
AIR GAP HEIGHT：6 mm
RATED POWER INPUT：12 W
MAXIMUM POWER INPUT：25 W
FORCE FACTOR, BL：3.53 TM
TYPE OF MAGNET：Ferrite
MOVING MASS：1.74 g
FERROFLUID ENHANCED：No
SUSPENSION COMPLIANCE：1215 uMN¯¹
EFFECTIVE PISTON AREA：0.0032 M²
Levc：0.012 mH
Zo：31 Ω
X-max：0.5 mm
Vas：1.77 Litr
Qts：0.55
Qms：2.96
Qes：0.68
