Description :

Comprerhnsive solution for audio design.
Combine Driver, passive radiator and box as one unit, patented.
Slim and tiny, low bass F0 = 78 Hz.
Module could be reshaped to fit customers application.
Good for portable, soundbar, multimedia application.

Unit : pc Gross Weight : 0.367kg

PRODUCT NO.：T1-2121SD

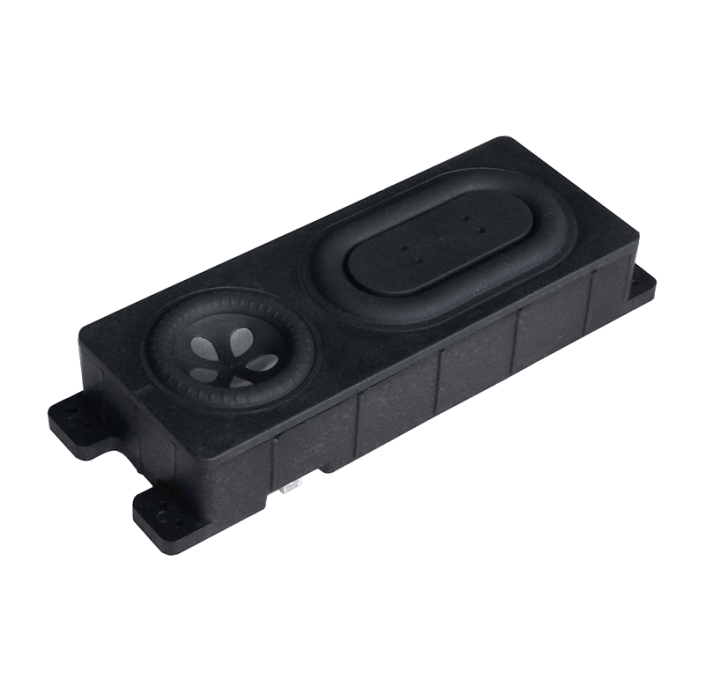

DESCRIPTION：1" Alum. rectangle full rang module
DRIVER：46mm inverted shape driver
DIAPHRAGM MTL：Alum. composite with elastomer HOUSING MTL：PP composite material
FINISH：Black
DIMENSION：157*54*29.5 mm
VOICE COIL DIAMETER：28 mm
NOMINAL IMPEDANCE：4 Ω RATED
POWER INPUT：6 W (RMS)
MAXIMUM POWER INPUT：12 W

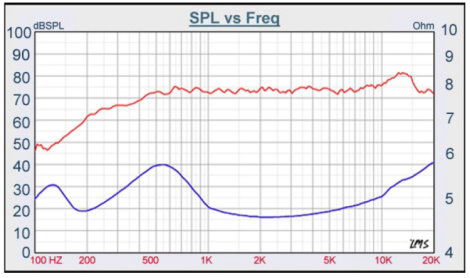

RESPONSE RANGE：78-20K Hz
SENSITIVITY 1W/1m：79 dB
F0：78 Hz
POWER RECOMMENDED：6 W (RMS)
DESIGN SUGGESTION：Passive radiator design
