Description :

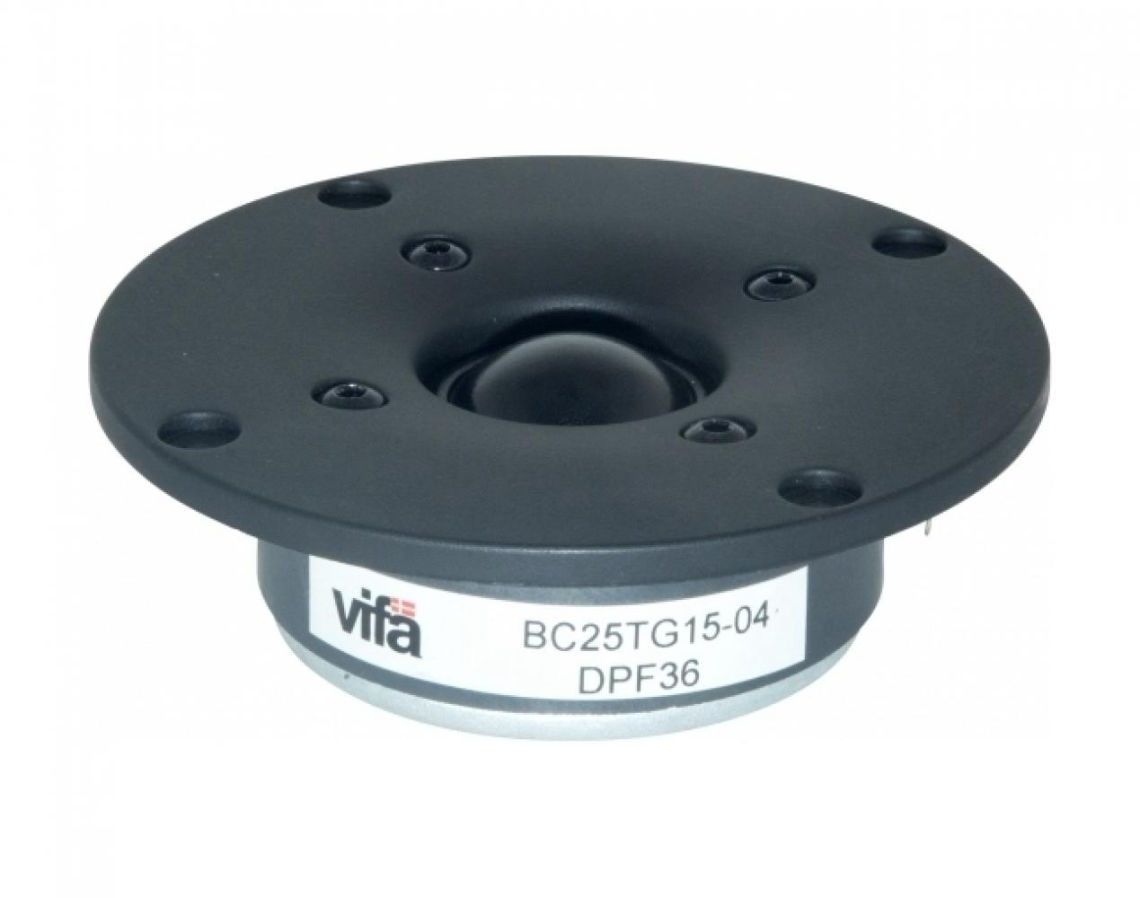

The BC family of tweeters features a damped fabric dome for smooth frequency response performance and ferrofluid in the gap of the ferrite magnet motor,providing enhanced cooling of the voice coil. BC tweeters come with a compact faceplate with recessed mounting holes,complete with sealing gasket which helps reduce vibration between baffle and driver.
Specifications
Driver Size 25 mm –
DC Resistance 2.99 Ω ±5.0%
Resonant Frequency 1128.01 Hz 15%
Half Space Sensitivity @ 2.83V 93.21 dB ±1.01
Sensitivity @ 1W/1m 89.8 dB ±1.01
Rated Noise Power (IEC 268-5 18.1) 50 W –
Test Spectrum Bandwidth 1.1kHz - 20kHz 12 dB/Oct –
Effective Piston Area 6.2 cm2 –
Moving Mass 0.3 g –
Motor Force Factor 2.28 T•m –
Voice Coil Inner Diameter 25.4 mm –
Gap Height 3 mm –
Maximum Linear Excursion 0.6 mm –
Ferrofluid Type APG027 –
Minimum Impedance 3.7 Ω ±7.5%
Voice Coil Inductance 0.02 mH –
Mechanical Q Factor 2.54 –
Electrical Q Factor 1.26 –
Total Q Factor 0.84 –
Ratio 1338.08 fs/Qts –
Energy Bandwidth Product ((1/Qes)•fs) 896.11 –
Suspension Compliance 64.5 μm/N –
Effective Cone Diameter 2.8 cm –
Motor Efficiency Factor 1.7 (T•m2)/Ω –
Voice Coil Former Material ASV –
Driver Mass 0.5 Kg –
Equivalent Volume 0 L –
