Tang Band 25-1983 1" Titanium Dome/Neodymium Tweeter

Description :
Reverse coated titanium dome diaphragm with foam rubber surround.
Ferrofluid cooled.
Neodymium magnet system, high SPL at 90dB/M/W.
Aluminum front panel.
Very wide dispersion angle.
Frequency response of 500 Hz - 40k Hz.
Short ring treated, very low 2nd and 3rd distortion.

Unit : pc Gross Weight : 0.552kg

Technical Parameters
SIZE:25mm
CATEGORY:Tweeter
DIAPHRAGM MTL:Coated Titanium
SURROUND MTL:Foam Rubber
NOMINAL IMPEDANCE:8 Ω
DCR IMPEDANCE:6 Ω
SENSITIVITY 1W/1m:90 dB

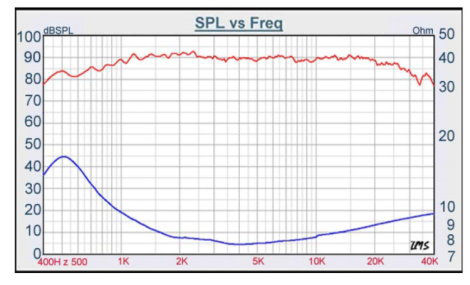

FREQUENCY RESPONSE:500-40K Hz
FREE AIR RESONANCE:500 Hz
VOICE COIL DIAMETER:25.4 mm
AIR GAP HEIGHT:2.5 mm
RATED POWER INPUT:8 W
MAXIMUM POWER INPUT:80 W
TYPE OF MAGNET:Neodymium
FERROFLUID ENHANCED:Yes
Levc:0.004 mH
Zo:18 Ω

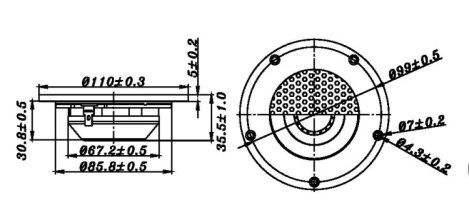

Performance and installation details
