Tang Band W6-658I 6.5" PPM. Woofer

Description :

Extremely linear excursion design.
PPM cone with twin roll shape rubber surround.
Die cast basket, PPM phase plug.
Intended for bass reflex enclosures.
Vented pole piece.
CCAW with Kapton bobbin / conex spider.

Unit : pc Gross Weight : 1.594kg

Technical Parameters
SIZE:6.5"
CATEGORY:Woofer
DIAPHRAGM MTL:PPM
SURROUND MTL:Rubber
NOMINAL IMPEDANCE:8 Ω
DCR IMPEDANCE:6 Ω
SENSITIVITY 1W/1m:89 dB
FREQUENCY RESPONSE:45-10K Hz
FREE AIR RESONANCE:45 Hz
VOICE COIL DIAMETER:25.4 mm
AIR GAP HEIGHT:6 mm
RATED POWER INPUT:30 W
MAXIMUM POWER INPUT:60 W
FORCE FACTOR, BL:6.32 TM
TYPE OF MAGNET:Ferrite
MOVING MASS:10.98 g
FERROFLUID ENHANCED:No
SUSPENSION COMPLIANCE:1017 uMN¯¹
EFFECTIVE PISTON AREA:0.014 M²
Levc:0.118 mH
Zo:58 Ω
X-max:4.10 mm
Vas:28.31 Litr
Qts:0.44
Qms:4.49
Qes:0.49

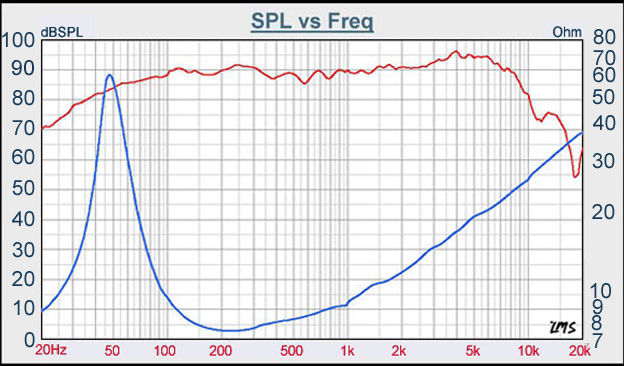

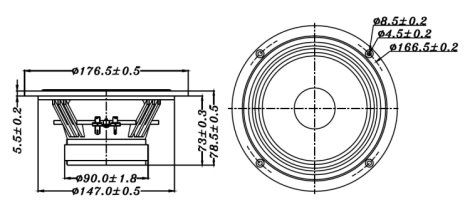

Performance and installation details
