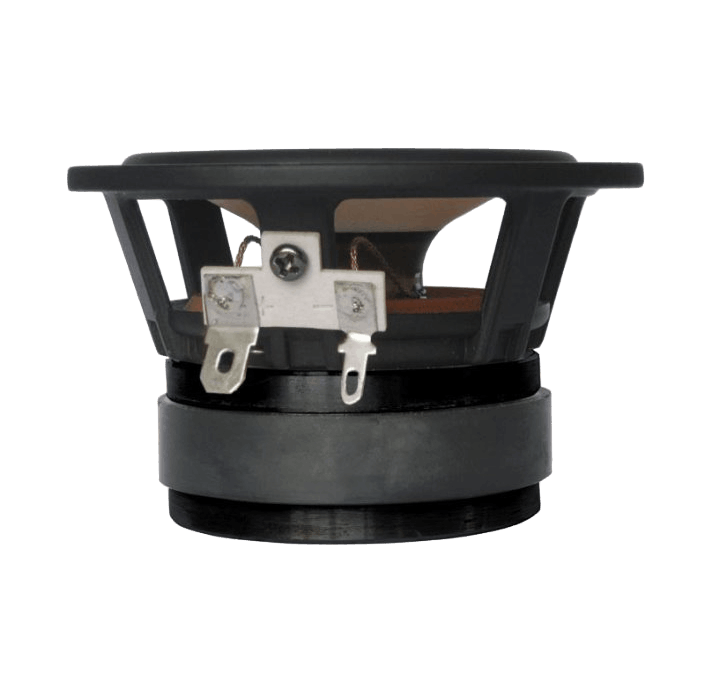

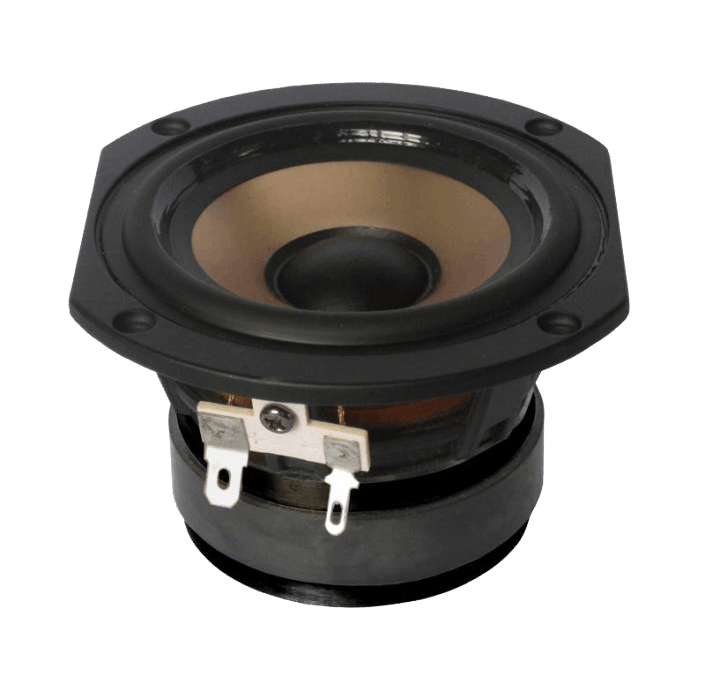

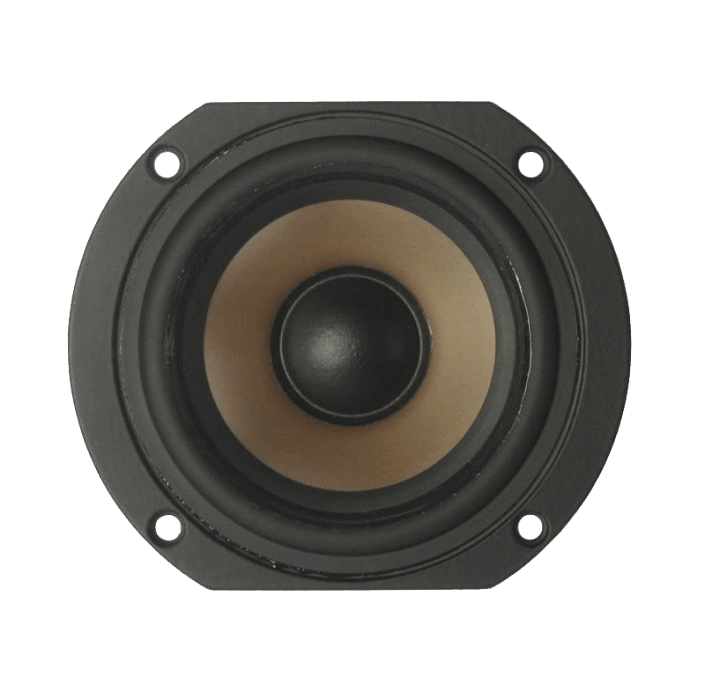

Tang Band W3-532SQF 3" PPM Full Range

Description :

Full range speaker design.
Die cast basket.
PPM cone with santoprene surround.
CCAW with Kapton bobbin.

Unit : pc Gross Weight : 0.482kg

Technical Parameters
SIZE:3"
CATEGORY:Full Range
DIAPHRAGM MTL:Natural color
PPM SURROUND MTL:Santoprene
NOMINAL IMPEDANCE:8 Ω
DCR IMPEDANCE:6.6 Ω
SENSITIVITY 1W/1m:86 dB

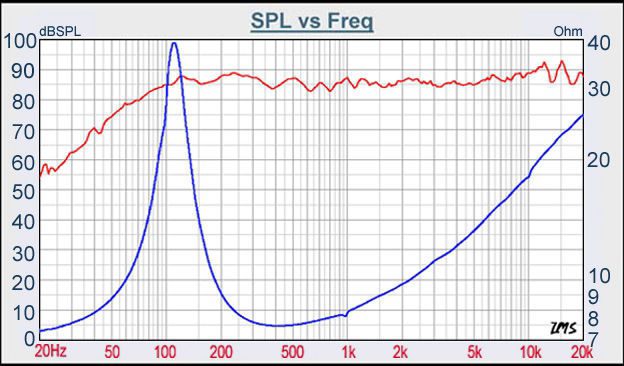

FREQUENCY RESPONSE:100-20K Hz
FREE AIR RESONANCE:100 Hz
VOICE COIL DIAMETER:20.4 mm
AIR GAP HEIGHT:6.0 mm
RATED POWER INPUT:12 W
MAXIMUM POWER INPUT:25 W
FORCE FACTOR, BL:3.23 TM
TYPE OF MAGNET:Ferrite
MOVING MASS:1.99 g
FERROFLUID ENHANCED:No
SUSPENSION COMPLIANCE:1057 uMN¯¹
EFFECTIVE PISTON AREA:0.0032 M²
Levc:0.075 mH
Zo:39 Ω
X-max:0.5 mm
Vas:1.54 Litr
Qts:0.72
Qms:4.37
Qes:0.87

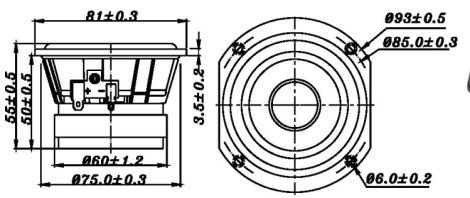

Performance and installation details
