Tang Band KIT0059	2.0 sound module amplifier, Bluetooth included, 10W per channel

Tang Band KIT0059 2.0 sound module amplifier, Bluetooth included, 10W per channel

Description :

2.0 full range amp
CLASS D,With DSP
RMS:10W*2
Distortion:0.2%
Sensitivity:350MV
In put:DC15V/2A
BT ID: Module-BT

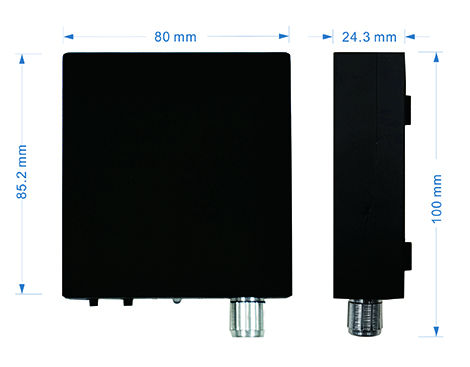

Size:80*85.2*24.3 mm

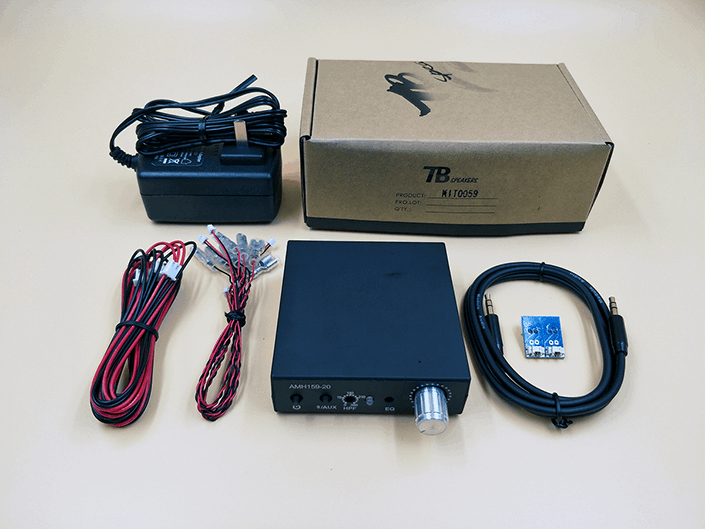

KIT0059 includes:

Amplifier AMH159-20:1pc(with housing)。
2 pin cable:2.54 connector on both ends ,1.5m,2pcs。
Short cable A:2 Pin,1.25 connector on both ends,200mm,2pcs。
Short cable B:2 Pin,1.25 connector on 1 end,the other with+110 / -110 Pin,200mm,2pcs。
Short cable C:2 Pin,1.25 connector on 1 end,the other with+205 / -110 Pin,200mm,2pcs。
Connector adaptor:20*9mm PCB,1 end 2.54 connector,the other with 1.25,2pcs。
Power adaptor:input voltage 100~240V (50Hz/60Hz),output voltage DC15V,2A,1pc。
Signal cable:3.5mm headphone jack on both ends,1m,1pc。
Please click above PDF button for user manual.。

2.1 System Recommendations:

Please purchase KIT0060 kit。
It is recommended to use the bass sound module T3-2190S(please refer to the KIT0060 user manual for the specific wiring)。

Unit : set Gross Weight : 0.37kg
