Tang Band 25-1414SC 25mm Titanium Dome/Neodymium Tweeter

Description :

Ceramic diaphragm with fabric surround.
Back chamber design, F0 at 800 Hz.
Low 2nd and 3rd distortion (low THD).
Excellent off-axis dispersion.
Frequency response of 800 Hz ~ 30 KHz.
Ferrofluid cooled.
Magnetic shielded.

SIZE:25mm
CATEGORY:Tweeter
DIAPHRAGM MTL:Ceramic
SURROUND MTL:Fabric
NOMINAL IMPEDANCE:4 Ω
DCR IMPEDANCE:3 Ω
SENSITIVITY 1W/1m:90 dB

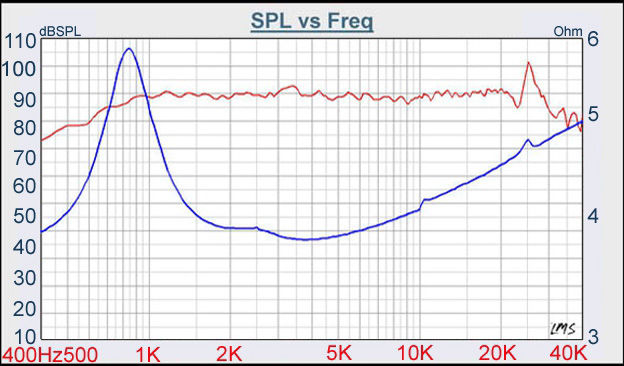

FREQUENCY RESPONSE:800-30K Hz
FREE AIR RESONANCE:800 Hz
VOICE COIL DIAMETER:25.4 mm
AIR GAP HEIGHT:2 mm
RATED POWER INPUT:8 W
MAXIMUM POWER INPUT:80 W
TYPE OF MAGNET:Neodymium
FERROFLUID ENHANCED:Yes
Levc:0.002 mH
Zo:5.8 Ω

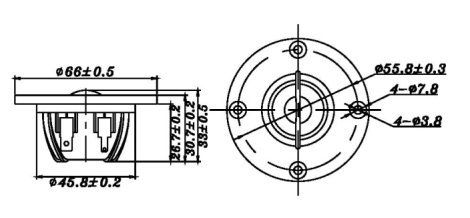

Performance and installation details
